Part # 13-104-2

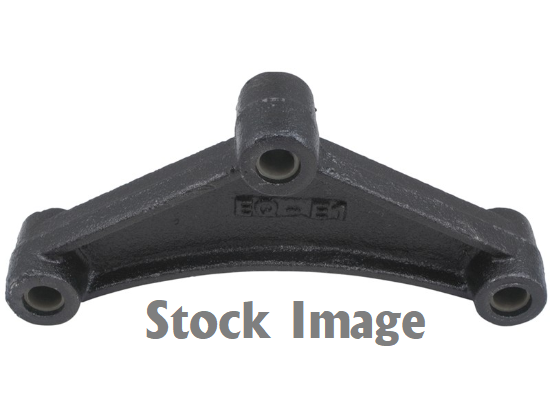

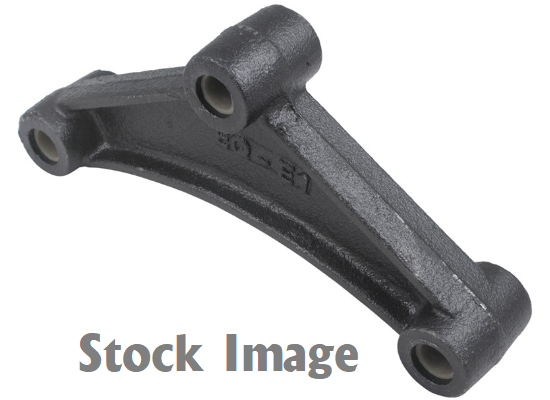

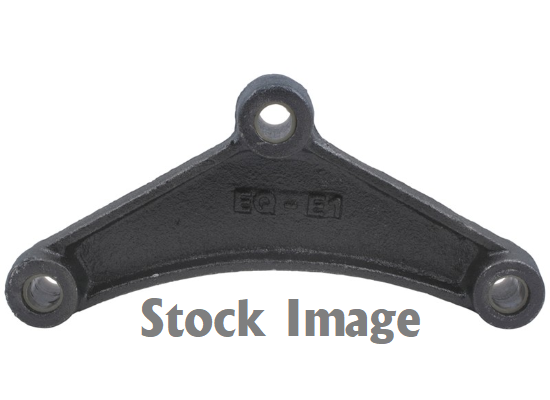

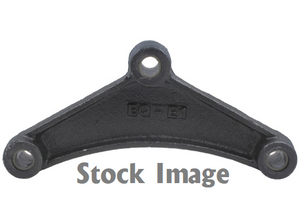

Multi-Axle Cast Curve Shaped Equalizer
Fits: 1 3/4" wide double-eye leaf springs
5 5/8" spring hole centers with 9/16" front spring hole
9/16" Equalizer center bolt hole
Universal - will fit left or right side
-----
| Axle Suspension Type | Leaf Spring Suspension |
|---|---|
| Leaf Spring Type | Double-Eye |
| Number of Axles | Multiple |
| Hardware Finish | Painted |
| Hardware Manufacturing Process | Cast |
| Equalizer / Hanger Position | Universal |
| Equalizer Shape | Curved |
| Equalizer Front Spring Hole Bolt Size | 9/16" |
| Equalizer Center Hole Bolt Size | 9/16" |
| Equalizer Rear Spring Hole Bolt Size | 9/16" |
| Equalizer Width OD | 1 3/4" |
| Leaf Spring Width | 1 3/4" |
| Spring Hole Centers | 5 5/8" |
| Front Spring Hole To Equalizer Hole Centers | 2 13/16" |
| Rear Spring Hole To Equalizer Hole Centers | 2 13/16" |
| Equalizer Spring Hole to Equalizer Hole Height | 2" |
| Equalizer Size | Short |
