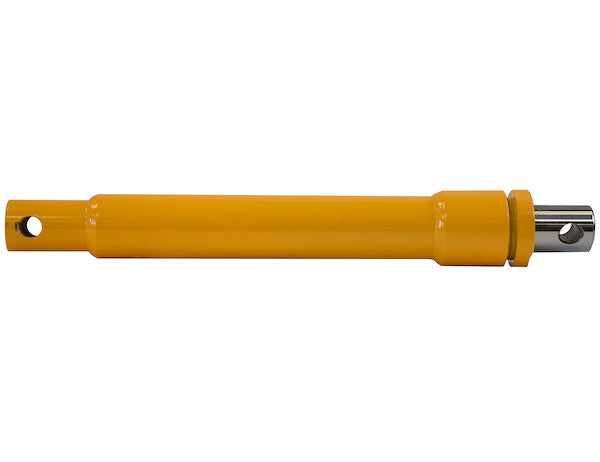

1 1/2 x 10" Power Angling Cylinder - 1304005

• Acting Single
• Base Diameter/Thickness 1.625 "
• Center to Center Extended 26.250 "
• Center to Center Retracted 16.250 "
• Pin Size .625 "
• Port Location Inline
• Rod Diameter/Thickness 1.500 "
• Stroke 10.000 "
• Bore 1.500 "
• Port Size 1/4 NPT

Please refer to your owner's manual for compatibility.

*If you are unsure which part is needed, please contact our Parts Department before purchasing at 815-899-4340 extension 20.*

Please note: For the safety of your project, we do not allow returns on any electric, hydraulic or magnetic items.  This includes lights, adapters, plugs and brake magnets.
