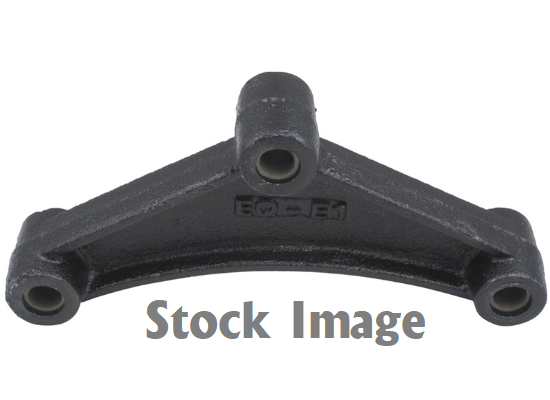

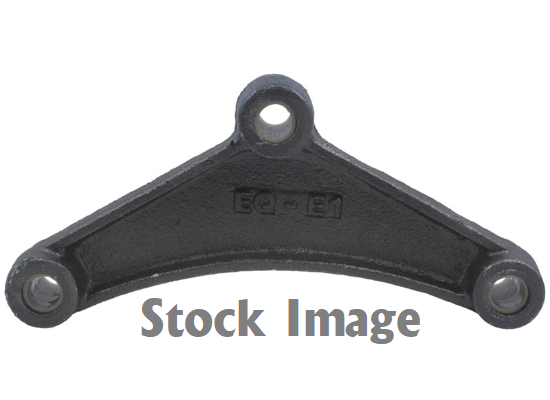

Multi-Axle Curved Equalizer - 13-104-2

Multi-Axle Cast Curve Shaped Equalizer

Dexter cast curved equalizer for multi-axle trailer leaf spring suspension. Fits 1-3/4" wide double-eye leaf springs. Universal — fits left or right side.

• Fits: 1-3/4" wide double-eye leaf springs
• Spring hole centers: 5-5/8"
• Front spring hole: 9/16"
• Equalizer center bolt hole: 9/16"
• Universal — fits left or right side

Specifications

• Axle Suspension Type: Leaf Spring Suspension
• Leaf Spring Type: Double-Eye
• Number of Axles: Multiple
• Hardware Finish: Painted
• Hardware Manufacturing Process: Cast
• Equalizer / Hanger Position: Universal
• Equalizer Shape: Curved
• Equalizer Front Spring Hole Bolt Size: 9/16"
• Equalizer Center Hole Bolt Size: 9/16"
• Equalizer Rear Spring Hole Bolt Size: 9/16"
• Equalizer Width OD: 1-3/4"
• Leaf Spring Width: 1-3/4"
• Spring Hole Centers: 5-5/8"
• Front Spring Hole To Equalizer Hole Centers: 2-13/16"
• Rear Spring Hole To Equalizer Hole Centers: 2-13/16"
• Equalizer Spring Hole to Equalizer Hole Height: 2"
• Equalizer Size: Short
