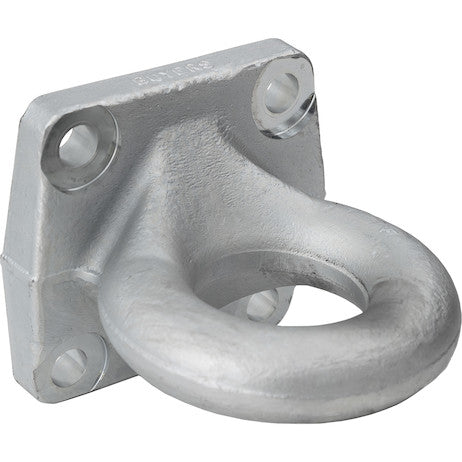

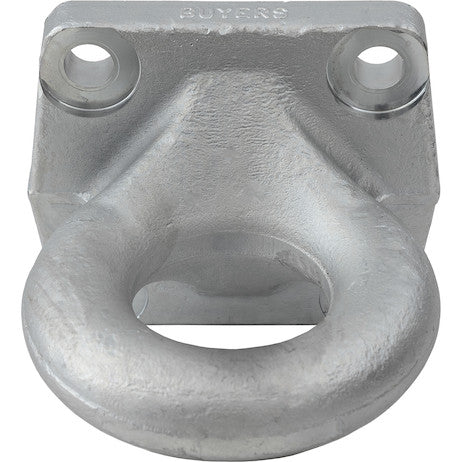

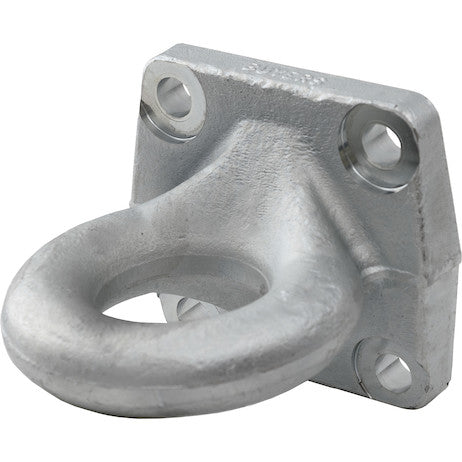

Buyers Products 3-Inch Zinc-Plated 4-Bolt Mount Drawbar — BDB13850Z
The Buyers Products BDB13850Z pintle ring/drawbar features one-piece forged alloy steel construction for use with pintle hitches. Its 3-inch inside-diameter eye is rated for a maximum gross trailer weight of 60,000 lb and a maximum vertical load of 15,000 lb, with a zinc-plated finish to resist corrosion.
Details:
Part#: BDB13850Z
Application: Drawbar/pintle ring for use with pintle hitches
Common uses: Construction trailers, heavy equipment trailers, and pup trailers
Construction: One-piece forged alloy steel
Finish: Zinc plated

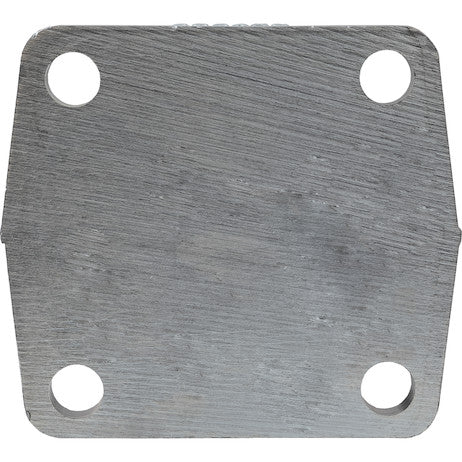

Mounting style: Four-bolt mount
Maximum gross trailer weight (MGTW): 60,000 lb
Maximum vertical load (MVL): 15,000 lb
Eye inside diameter: 3.00 inches
Eye outside diameter: 6.25 inches

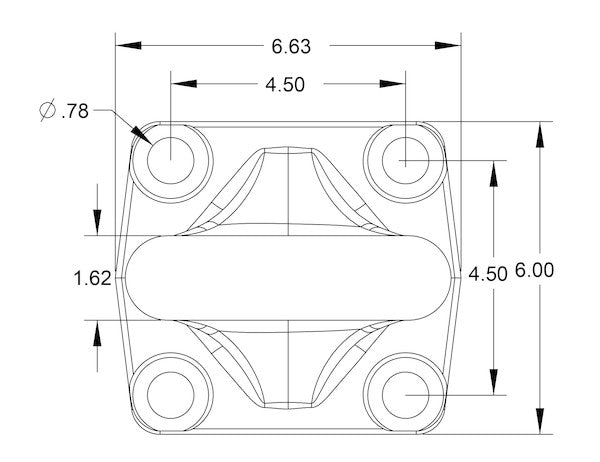

Vertical mounting hole spacing: 4.50 inches
Horizontal mounting hole spacing: 4.50 inches
Mounting hole diameter: 0.781 inch
Quantity
Couldn't load pickup availability
Please note: For the safety of your project, we do not allow returns on any electric, hydraulic, obsolete or magnetic items. This includes lights, adapters, plugs and brake magnets.
