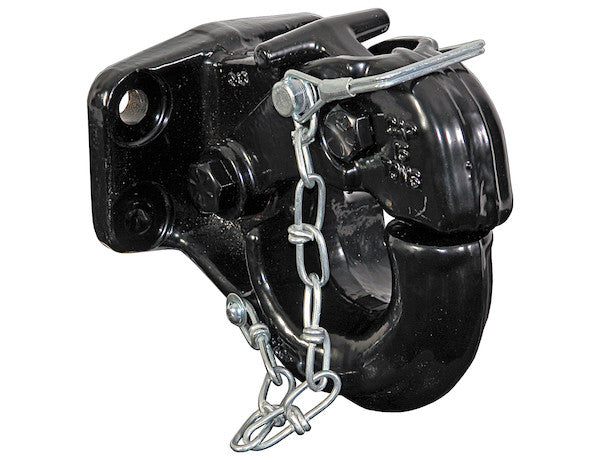

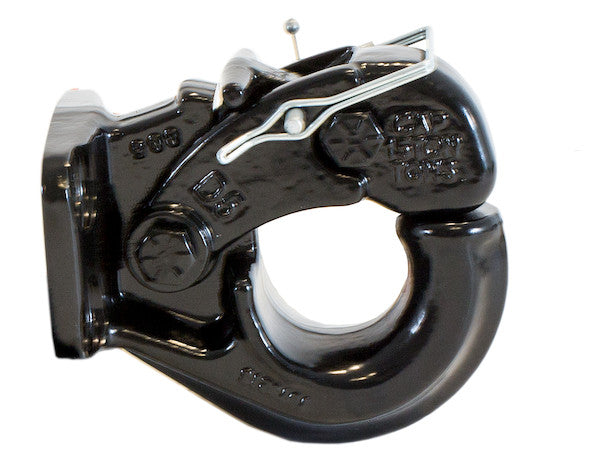

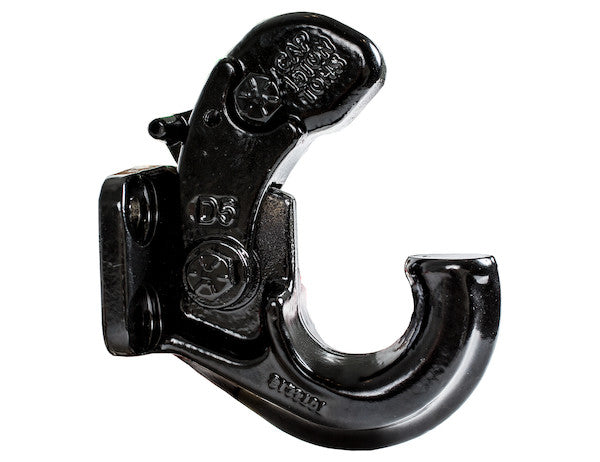

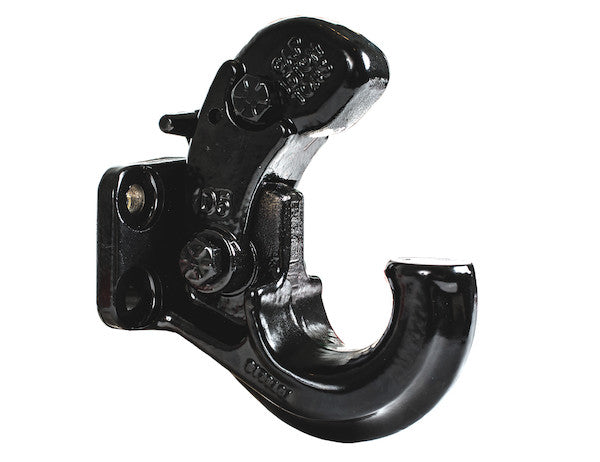

The Buyers Products 10040 pintle hook coupler features black powder-coated forged steel construction and a spring-loaded lock arm. It is compatible with lunette rings with a 2-inch or 3-inch inner diameter and is rated for a maximum gross total weight of 30,000 lb and a maximum vertical load of 6,000 lb.
Details:
Part#: 10040
Fits: Lunette rings with a 2-inch or 3-inch inner diameter
Capacity designation: 15 ton
Maximum gross total weight: 30,000 lb
Maximum vertical load: 6,000 lb
Material: Forged steel
Finish: Black powder coat
Lock arm: Spring-loaded
Vertical mounting-hole spacing: 1.75 inches center to center
Horizontal mounting-hole spacing: 3.375 inches center to center
Mounting-hole diameter: 0.531 inch

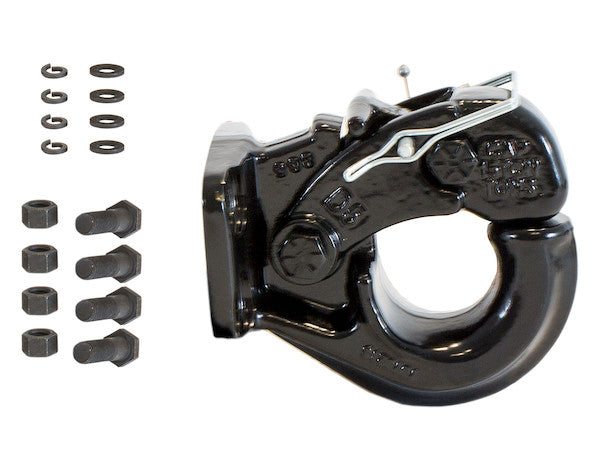

Mounting hardware: Sold separately
