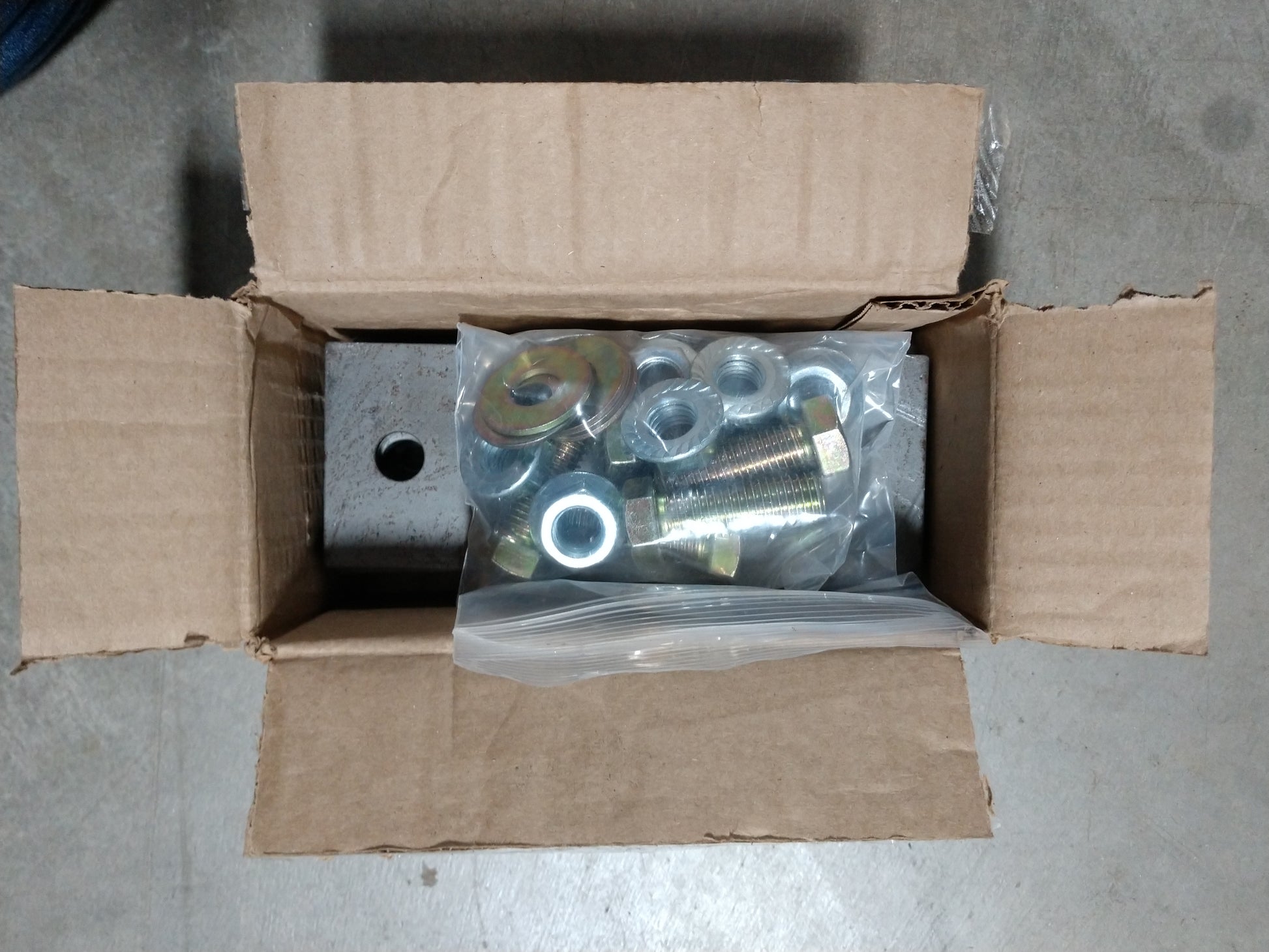

New in box - Commonly used for CM, Norstar, Hillsboro, J&I, and most aftermarket flatbeds with a steel frame.

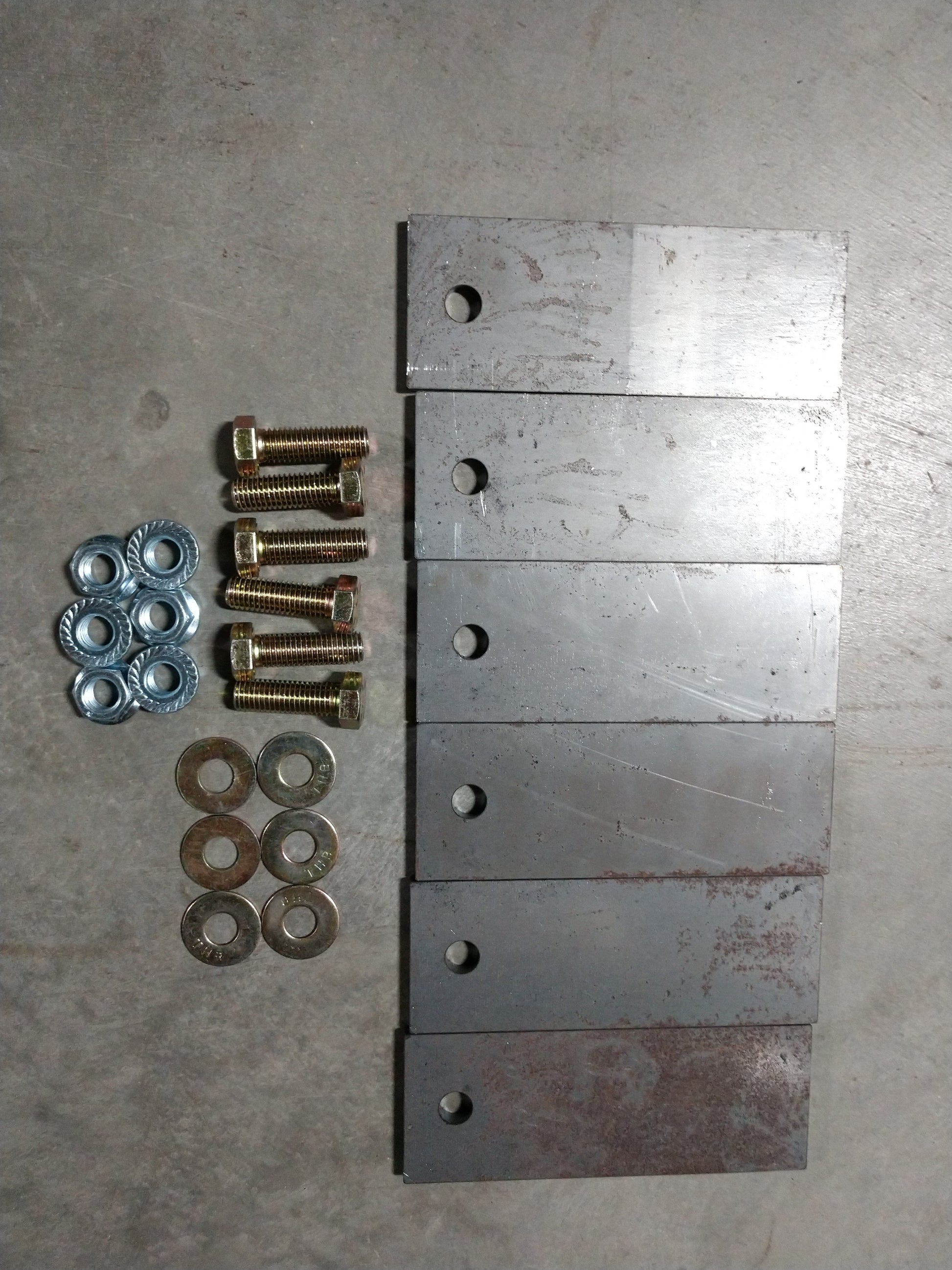

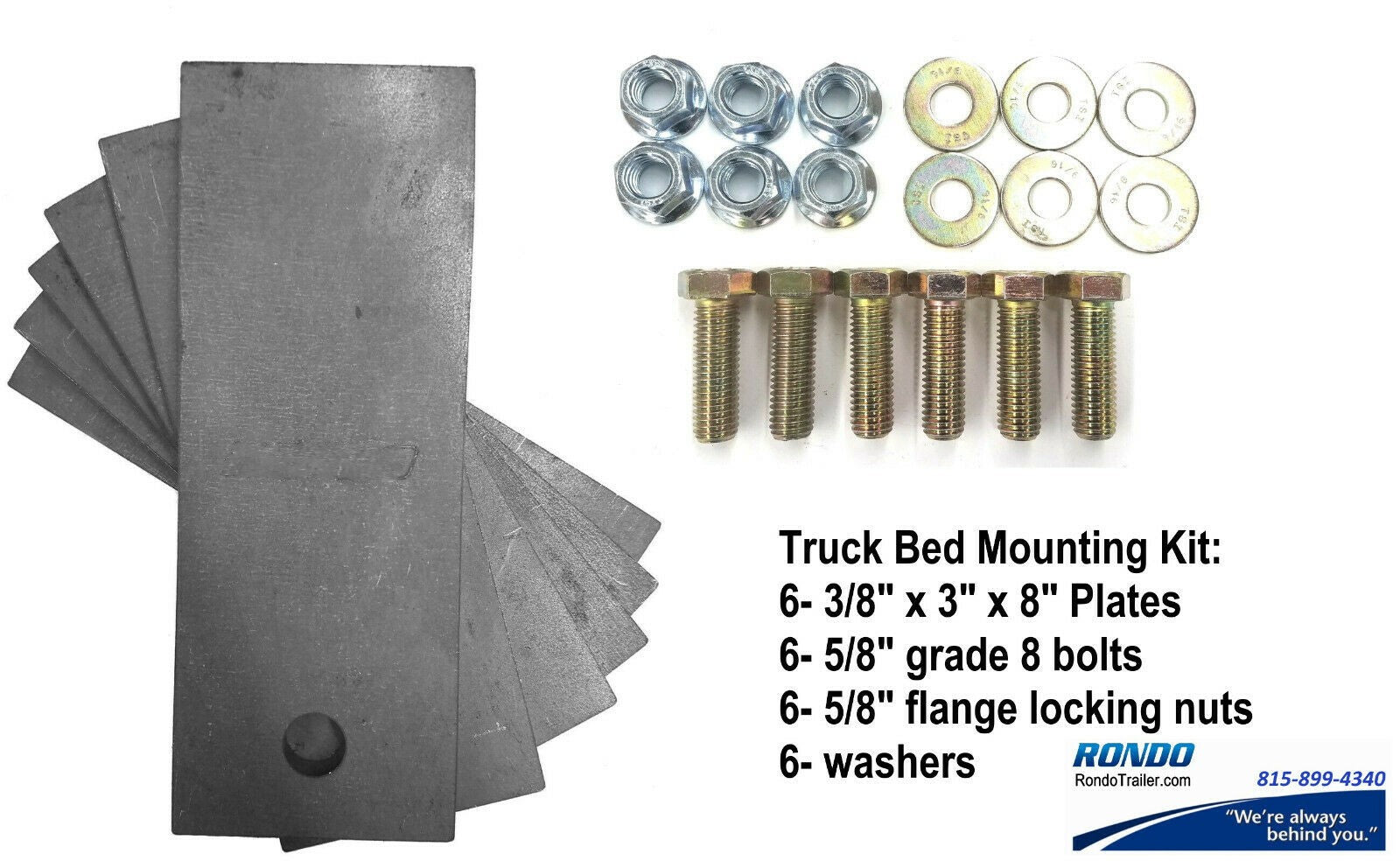

Kit Includes:
(6) 3/8" thick x 3" x 8" carbon steel plates
Attention! Plates may come as raw/bare metal as pictured or painted black - both are the same & are used interchangeably - cannot request one or the other when ordering.

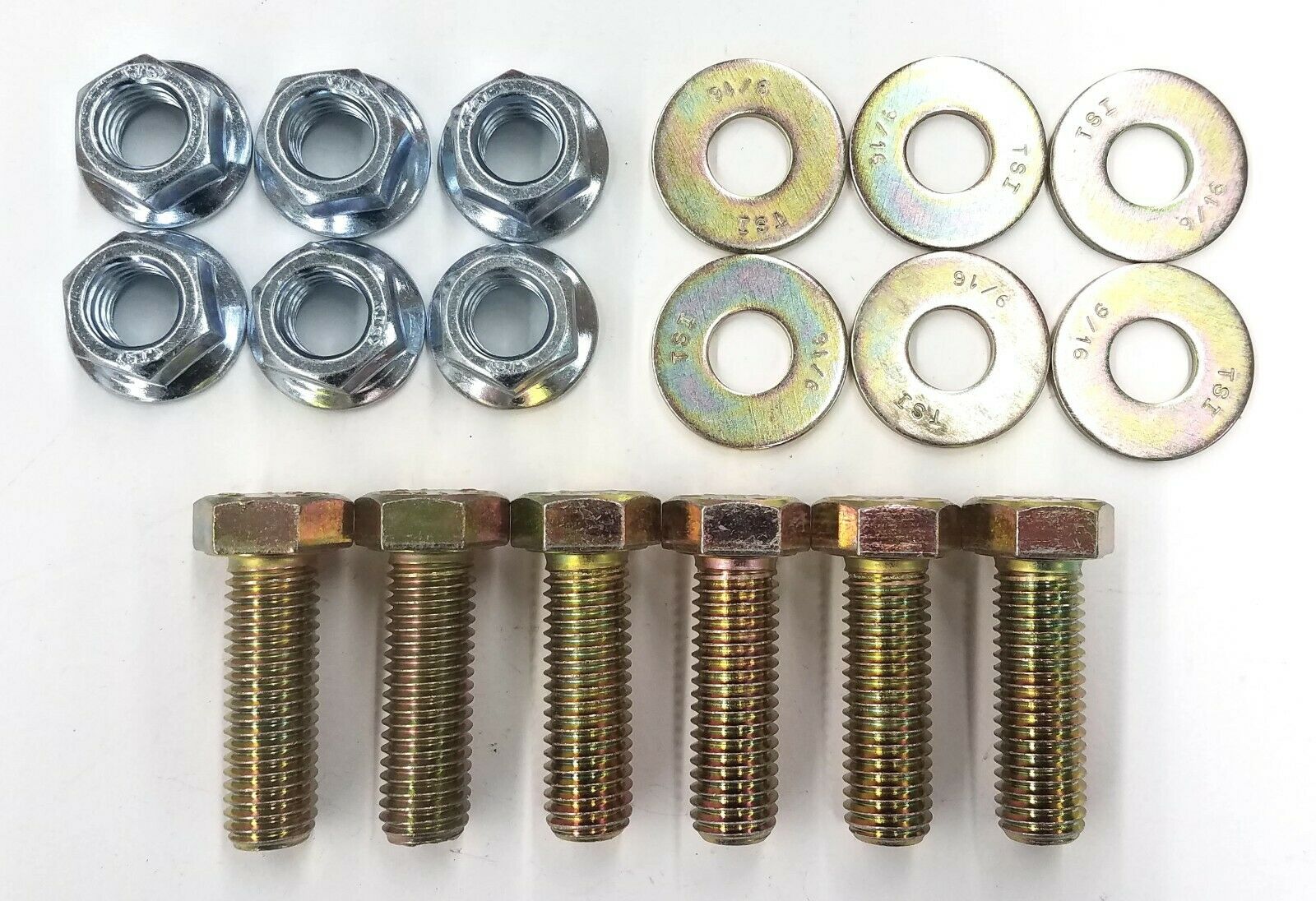

(6) 5/8" grade 8 bolts
(6) 5/8" flange locking nuts
(6) Washers
Bolt the steel straps to the vehicle's frame and weld to the flatbed's frame.
Other parts and metal may be needed depending on bed and vehicle application. Â Welding and drilling required for installation of parts included in the kit.
Does not work on CM/Dakota Service Bodies!
Note: Kit is designed to work ONLY with the correct frame rail dimensions. Other fabrication may be necessary. Â Message us if you have questions!
