Weld-On Bullet Hinge .51 x 2.76" Stainless - FSS070
Weld-On Bullet Hinge .51 x 2.76" Stainless - FSS070
Weld-On Bullet Hinge .51 x 2.76" Stainless - FSS070
Weld-On Bullet Hinge .51 x 2.76" Stainless - FSS070

Weld-On Bullet Hinge .51 x 2.76" Stainless - FSS070

$13.56
$13.56
Part # FSS070

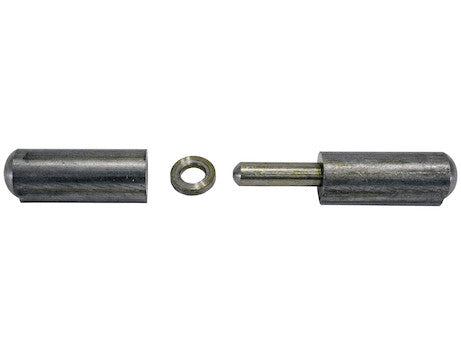

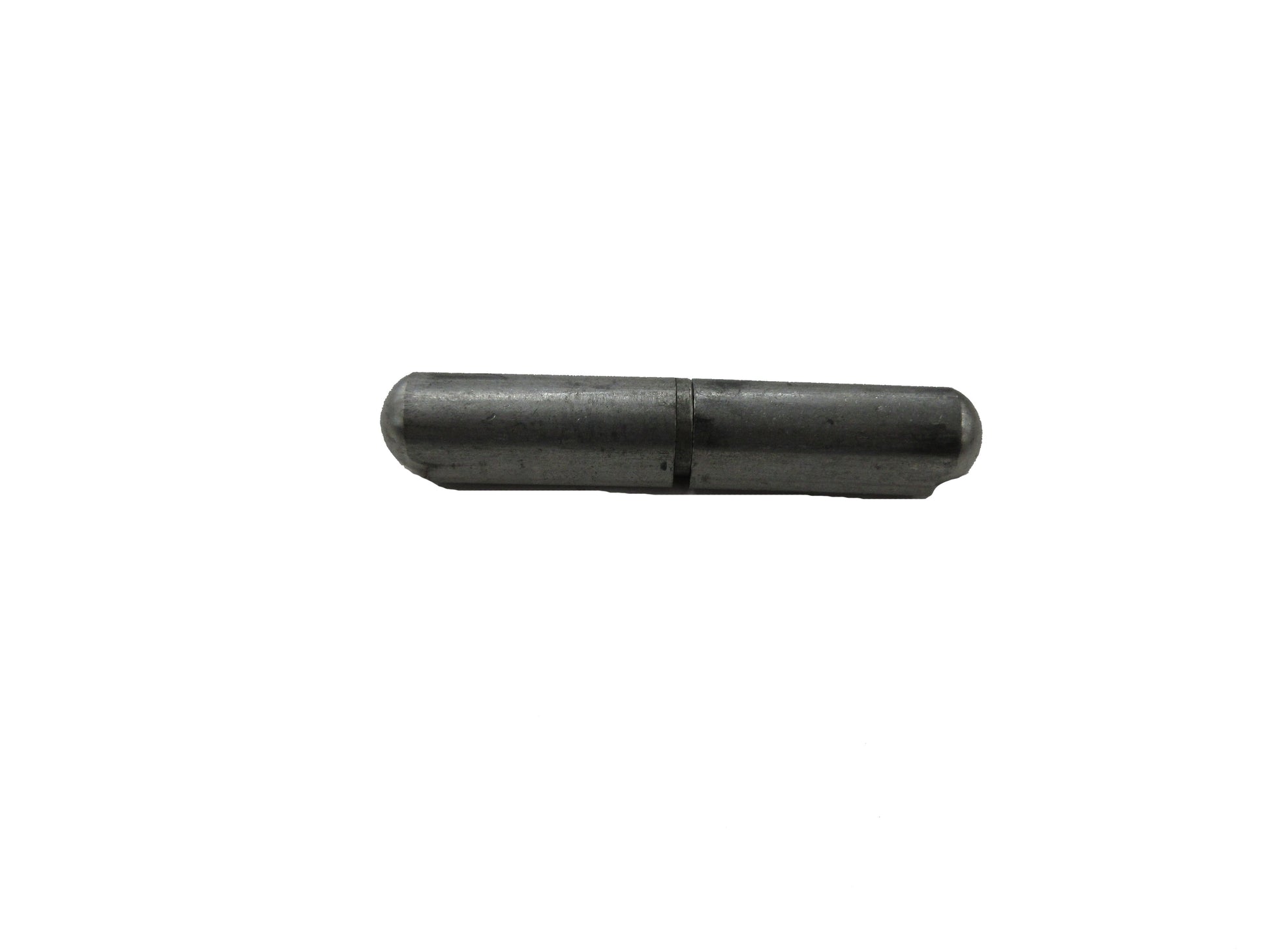

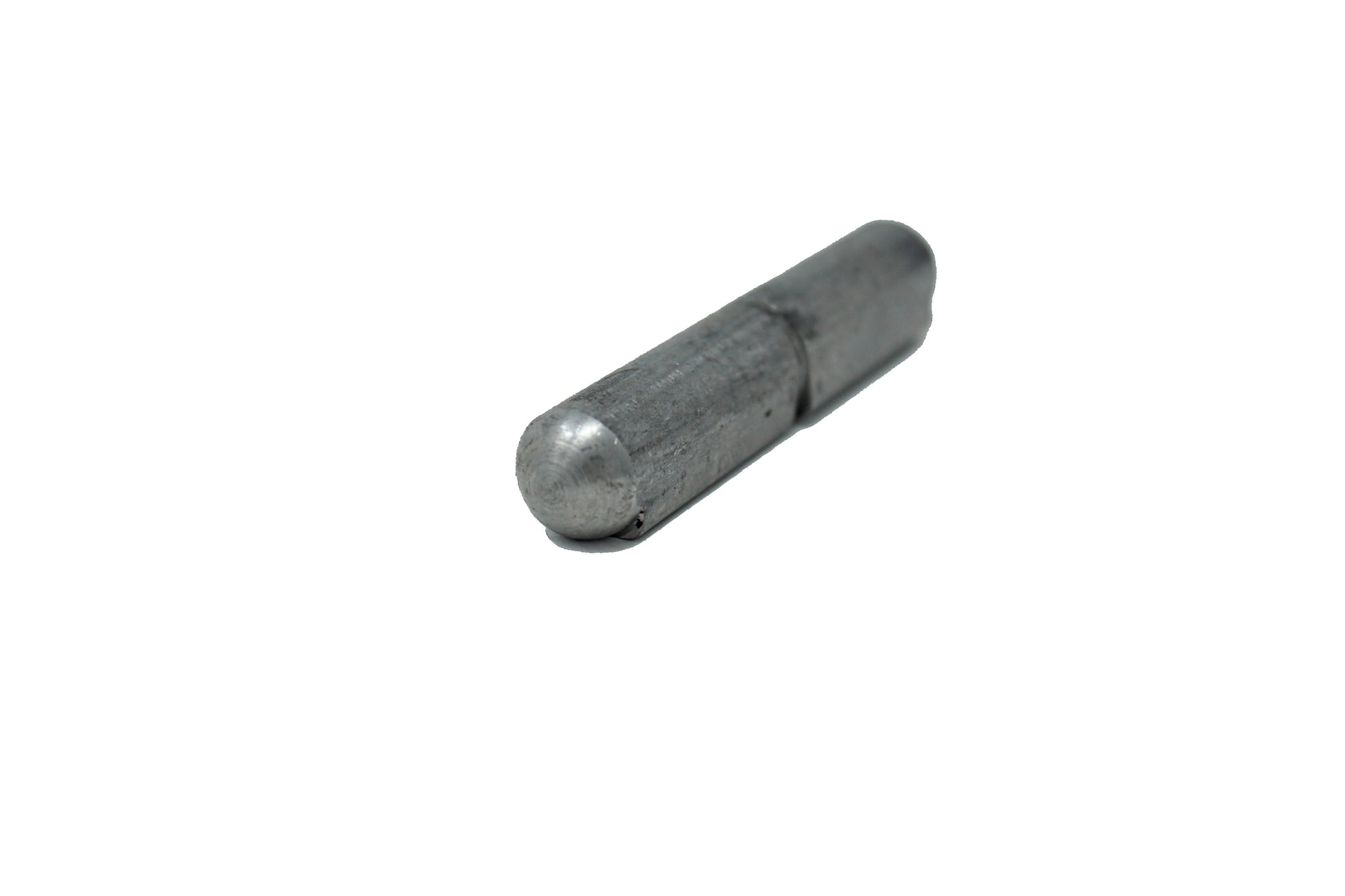

Weld-On Bullet Hinge

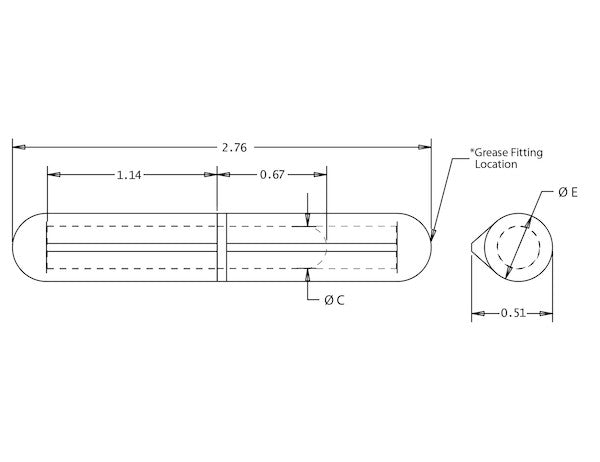

  • Overall Length: 2.75"
  • Finish: Plain
  • Hinge Length: 2.76 "
  • Material: Stainless Steel
  • Mounting Type: Weld-on
  • Thickness: 0.51 "
  • Pin Diameter2: 0.24 "
  • Overall Diameter: 0.45 "
  • Greasable: No
  • Pin Length A: 1.14 "
  • Pin Length B: 0.67 "
  • Pin Material: Stainless Steel
  • Bushing Material: Stainless Steel
