Buyers 2.5-Inch Welded 4-Bolt Pintle Ring, 42K — BDB125015W

Buyers Products 2.5-Inch Welded 4-Bolt Mount Drawbar — BDB125015W

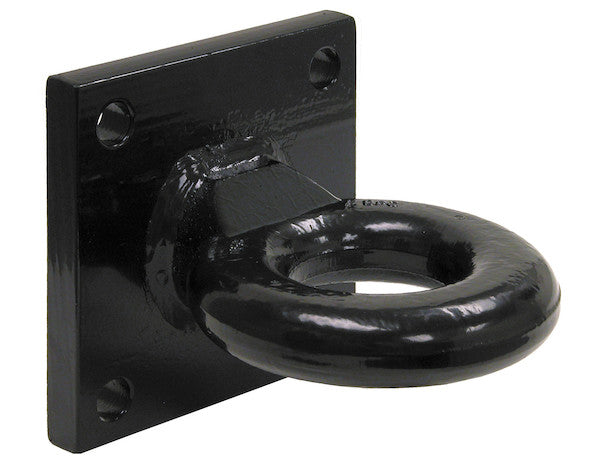

The Buyers Products BDB125015W pintle ring/drawbar features welded carbon-steel construction for construction and equipment trailers. Its 2.5-inch inside-diameter eye is rated for a maximum gross trailer weight of 42,000 lb and a maximum vertical load of 7,000 lb, with a black powder-coated finish to resist corrosion.

Details:

• Part#: BDB125015W
• Common uses: Construction trailers, equipment trailers, and contractor equipment
• Construction: Welded carbon steel
• Finish: Black powder coat
• Mounting style: Four-bolt mount
• Maximum gross trailer weight (MGTW): 42,000 lb
• Maximum vertical load (MVL): 7,000 lb
• Eye inside diameter: 2.50 inches
• Eye outside diameter: 5.50 inches

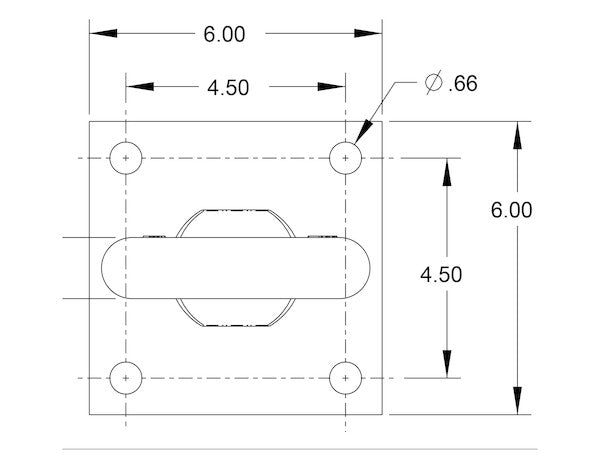

• Vertical mounting hole spacing: 4.50 inches
• Horizontal mounting hole spacing: 4.50 inches
• Mounting hole diameter: 0.656 inch
