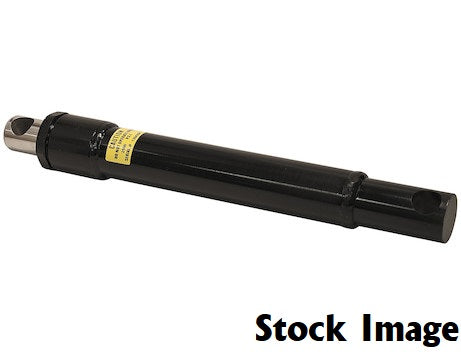

1 1/2 x 10" Angling Cylinder - 1304205

• Acting Single
• Base Diameter/Thickness 1.750 "
• Center to Center Extended 27.250 "
• Center to Center Retracted 17.250 "
• Pin Size .750 "
• Port Location 90°
• Rod Diameter/Thickness 1.500 "
• Stroke 10.000 "
• OEM Primary Brand Western®
• OEM Primary Part Number 56102
• Bore 1.500 "
• Western® 56102
• Port Size 1/4 NPT


Please refer to your owner's manual for compatibility.

*If you are unsure which part is needed, please contact our Parts Department before purchasing at 815-899-4340 extension 20.*

Please note: For the safety of your project, we do not allow returns on any electric, hydraulic or magnetic items.  This includes lights, adapters, plugs and brake magnets.
