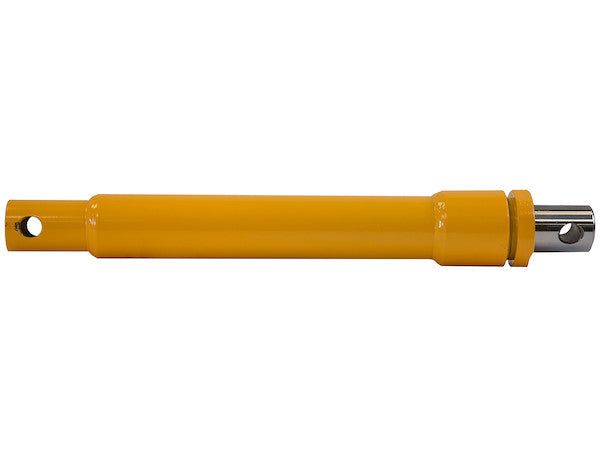

Part # 1304010
Angling Cylinder
1 1/2" X 6"
Replaces Meyer 05984
-----
- Acting Single
- Base Diameter/Thickness 1.625 "
- Center to Center Extended 18.375 "
- Center to Center Retracted 12.375 "
- Pin Size .625 "
- Port Location Inline
- Rod Diameter/Thickness 1.125 "
- Stroke 6.000 "
- Bore 1.500 "
- Port Size 1/4 NPT
Please refer to your owner's manual for compatibility.
*If you are unsure which part is needed, please contact our Parts Department before purchasing at 815-899-4340 extension 20.*
Please note: For the safety of your project, we do not allow returns on any electric, hydraulic or magnetic items. This includes lights, adapters, plugs and brake magnets.
