Weld-On Bullet Hinge .98 x 5.91" - FBP150GF
Weld-On Bullet Hinge .98 x 5.91" - FBP150GF
Weld-On Bullet Hinge .98 x 5.91" - FBP150GF

Weld-On Bullet Hinge .98 x 5.91" - FBP150GF

$12.00
$12.00
Part # FBP150GF

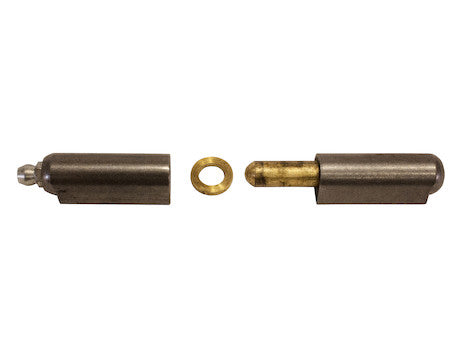

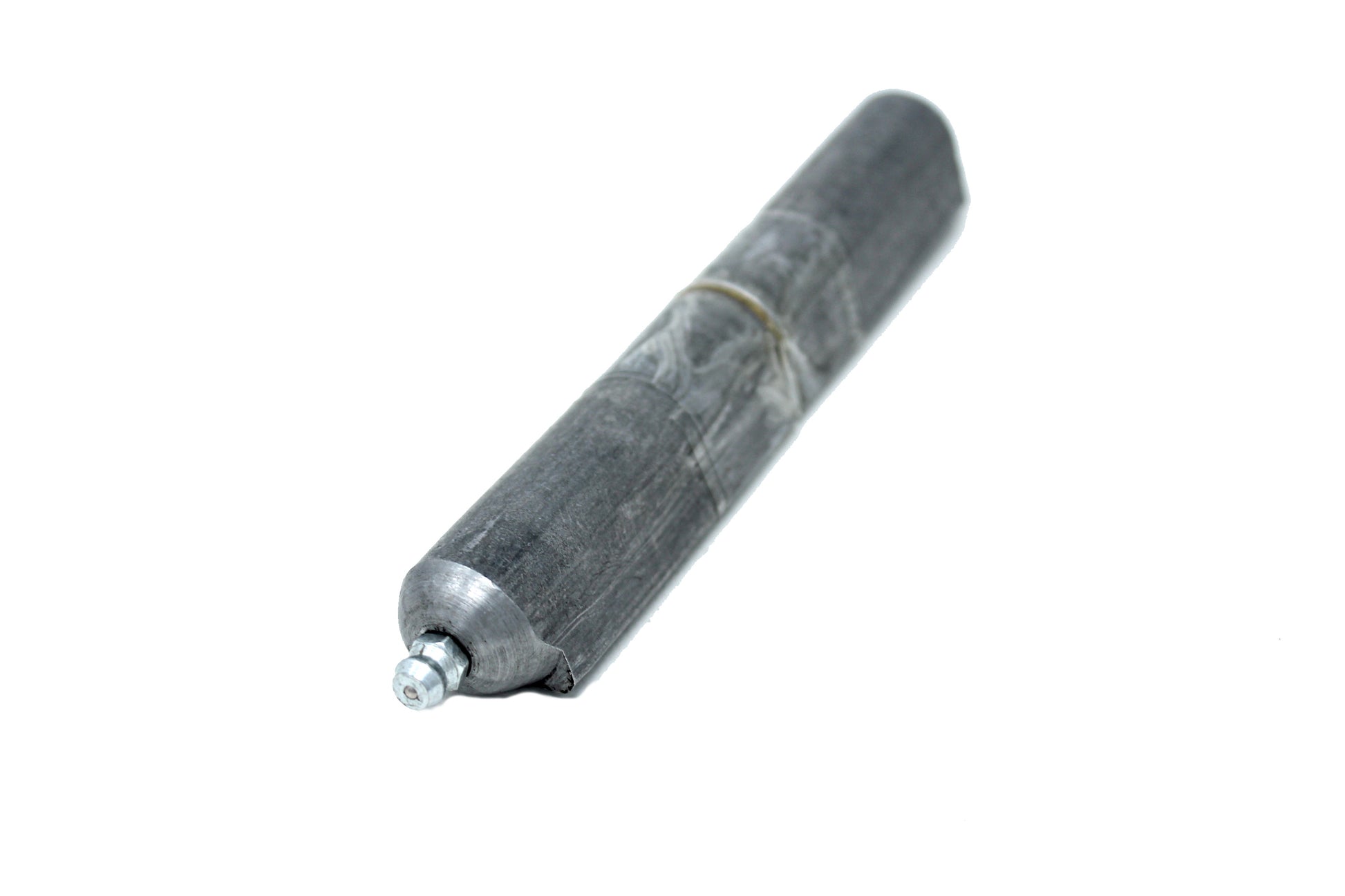

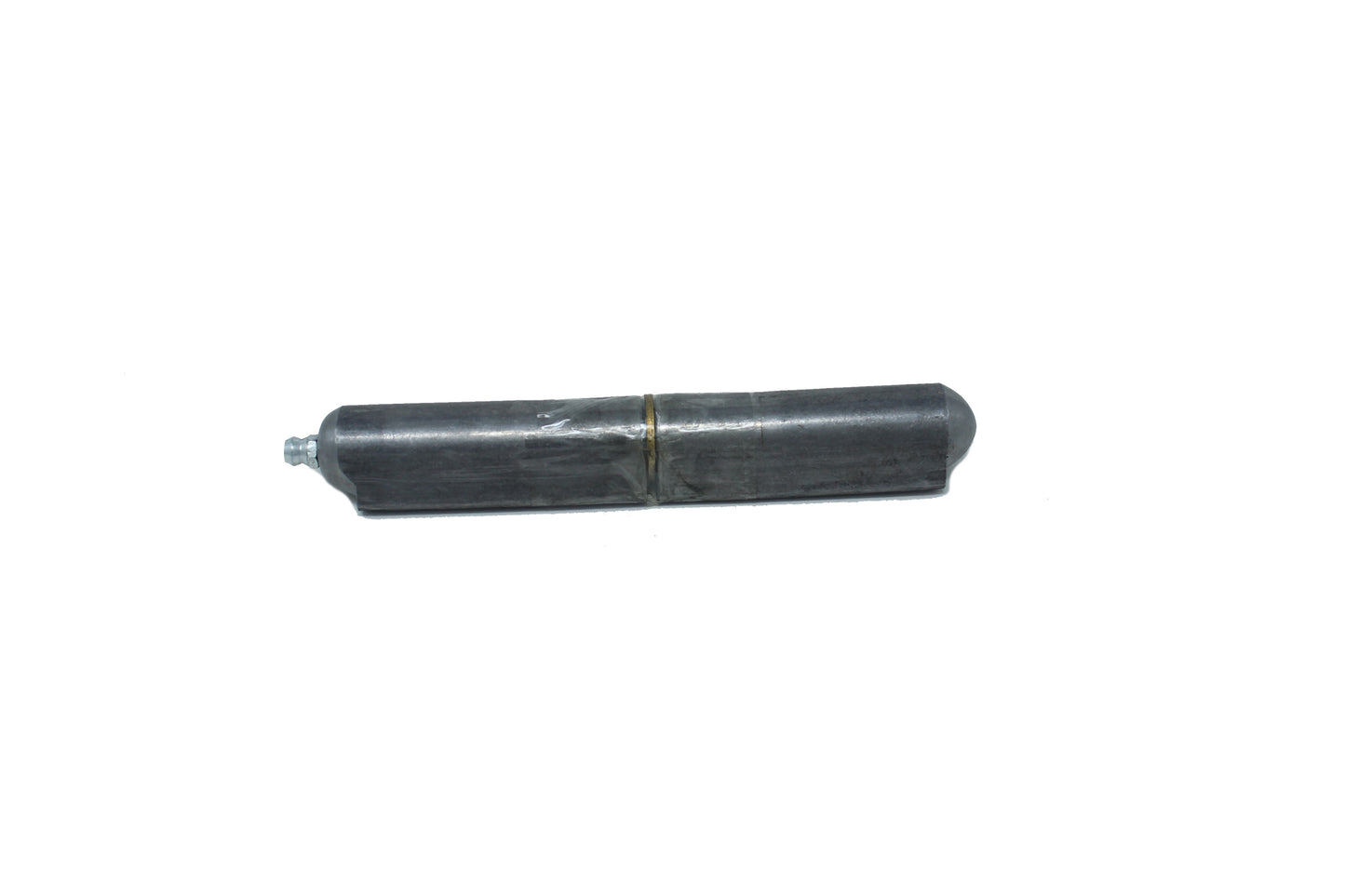

Weld-On Bullet Hinge
  • Overall Length: 6"
  • Finish: Plain
  • Hinge Length: 5.91 "
  • Material: Carbon Steel
  • Mounting Type: Weld-On
  • Thickness: 0.98 "
  • Pin Diameter2: 0.51 "
  • Overall Diameter: 0.79 "
  • Greasable: Yes
  • Pin Length A: 2.48 "
  • Pin Length B: 1.57 "
  • Pin Material: Brass
  • Bushing Material: Brass
