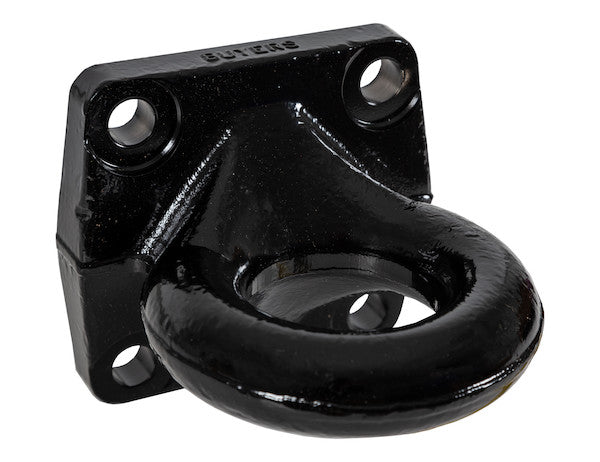

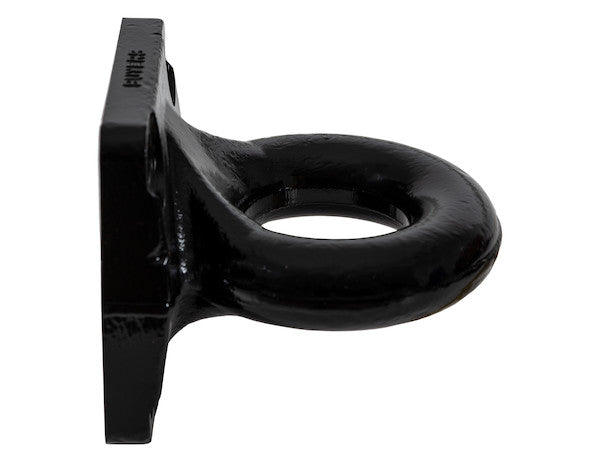

Part #Â BDB13850Z
Pintle Ring / Drawbar
Black Zinc Plated Forged Steel
Maximum Vertical Load (M.V.L.) 15,000 lb
Eye Outer Diameter 6.25 "
Maximum Gross Trailer Weight (M.G.T.W.) 60,000 lb
Eye Inner Diameter 3.00 "

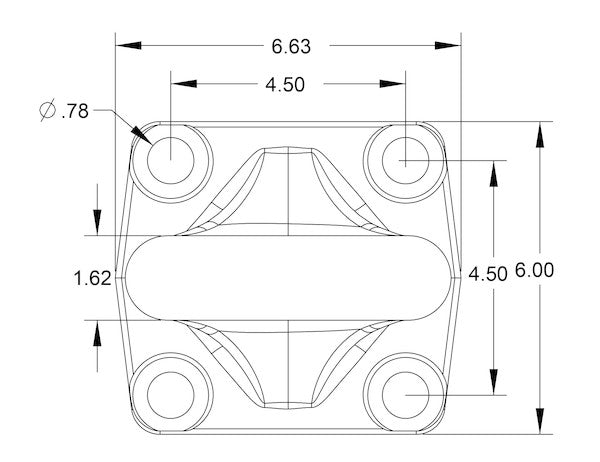

Vertical Hole Spacing 4.50 "
Horizontal Hole Spacing 4.50 "
Mounting Hole Diameter 0.781 "
