Rigid Hitch
Pintle Hook Mounting Plate 12"x12", 15k, RPM-12
Pintle Hook Mounting Plate 12"x12", 15k, RPM-12
Low stock: 1 left
Regular price
$124.20 USD
Regular price
Sale price
$124.20 USD
Shipping calculated at checkout.
Part # RPM-12
Pintle Mount Hitch, 12x12 In., 7-Hole, 15k
Solid Shank Pintle Hook Mounting Plate for 2" receivers.
This mount should only be used in the drop position
Converts 2 inch receivers for use with Pintle-Type trailers, quickly and easily
Provides mounting for both ball and pintle or rigid type Pintle Hooks
Black Powder Coat Finish
Pintle hook, mounting hardware, pin and clip all sold separately
15,000 lbs. Gross Towing Weight
1,500 lbs. Gross Tongue Weight

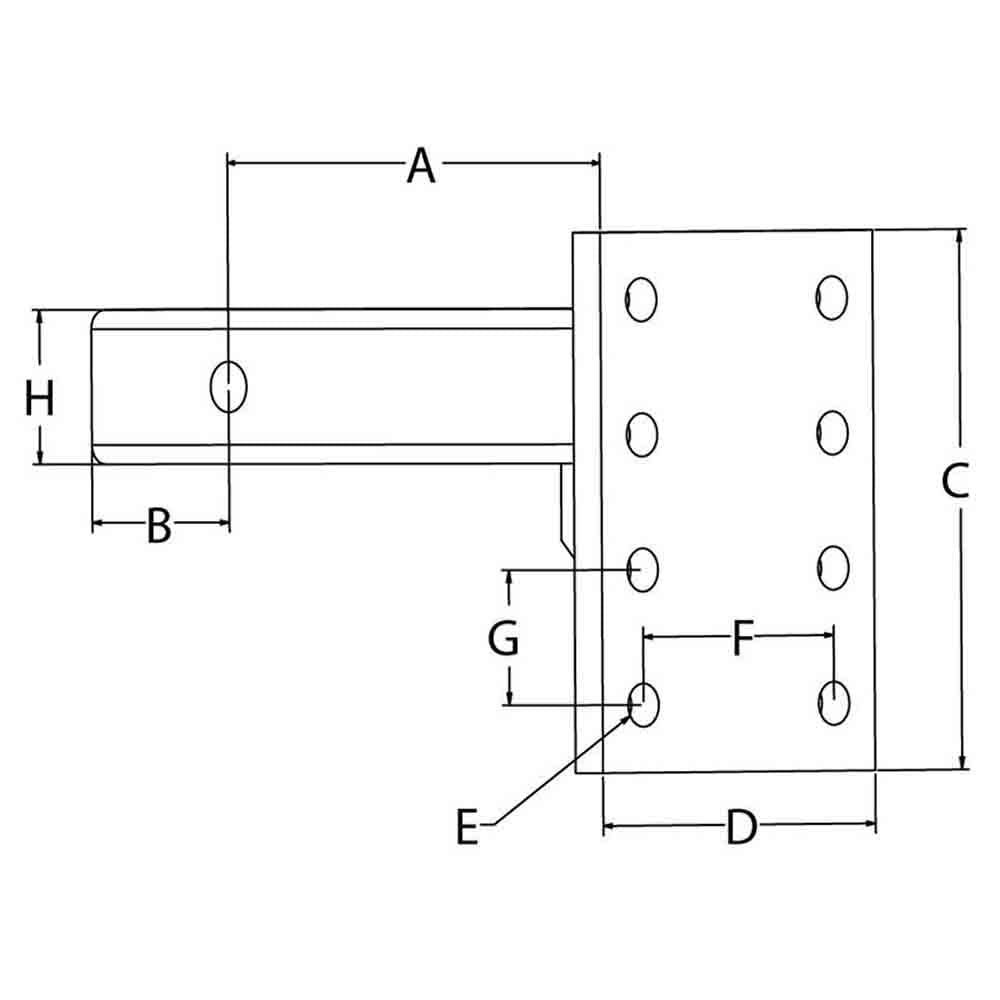

See Picture for details:
Height C- 12
Height G - 1 ¾
Hole E - 9/16
Hole Sets - 7
Mounting Hole Pattern 1 ¾ x 3 3/8
Shank Length A - 108 ¼
Shank Length B- 2 ½
Shank Size - 2
Width D - 5
Width F- 3 3/8
