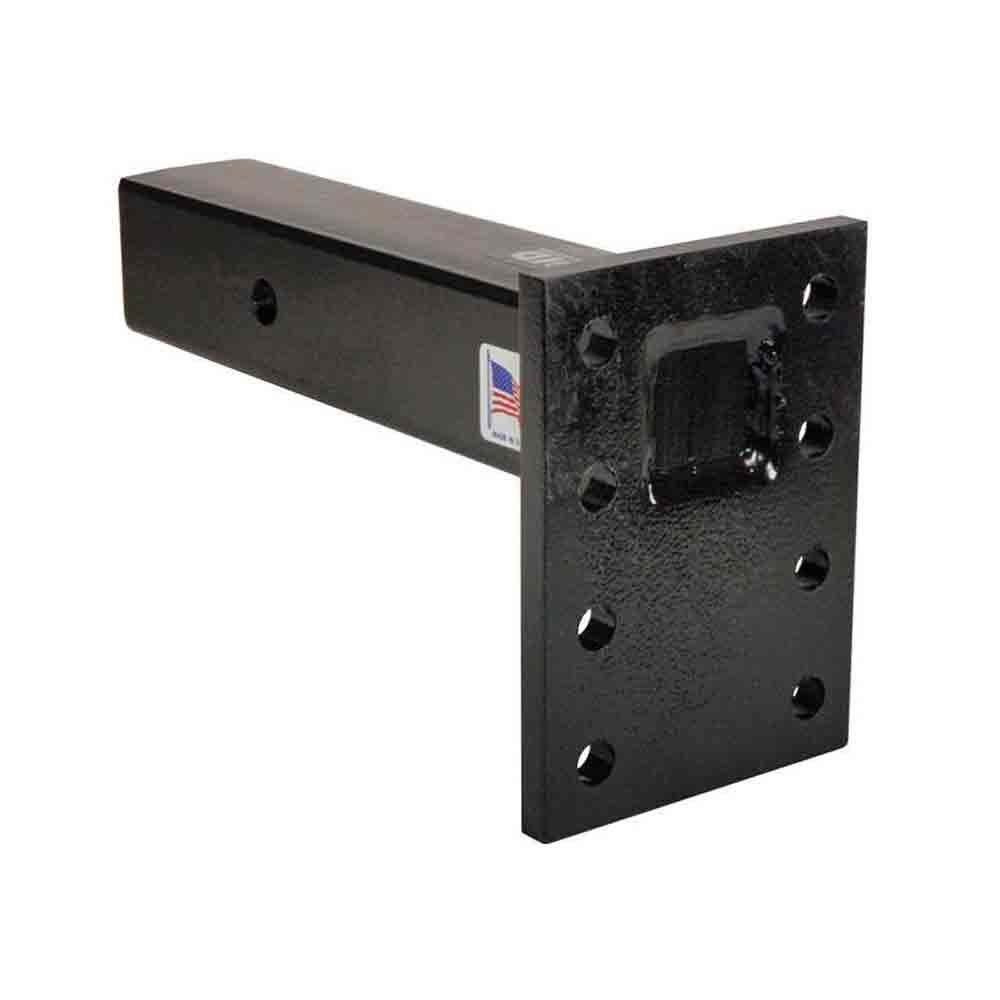

Solid Shank Pintle Hook Mounting Plate for Reese Titan and other 2-1/2" Receivers.
Converts 2-1/2 inch receivers for use with Pintle-Type trailers, quickly and easily
Provides mounting for both ball and pintle or rigid type Pintle Hooks
Black Powder Coat Finish
Pintle hook, mounting hardware, pin and clip all sold separately
18,000 lbs. Gross Towing Weight
3,500 lbs. Gross Tongue Weight

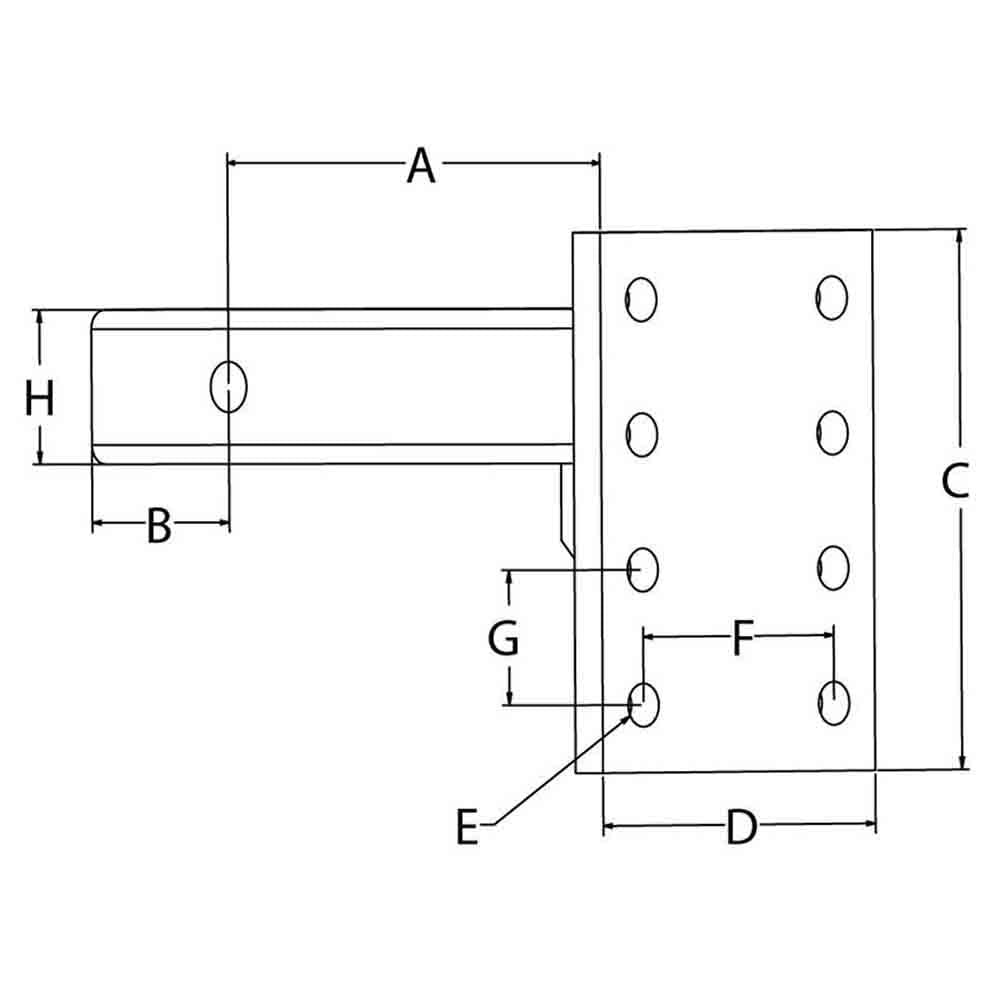

See Picture for details:
Height C -7
Height G -1 ¾
Hole E - 9/16
Hole Sets - 4
Mounting Hole Pattern -1 ¾ x 3 3/8
Shank Length - 8
Shank Length B - 4
Shank Size (solid) 2 1/2
Width D - 5
Width F - 3 3/8
