Part # FBP120GF

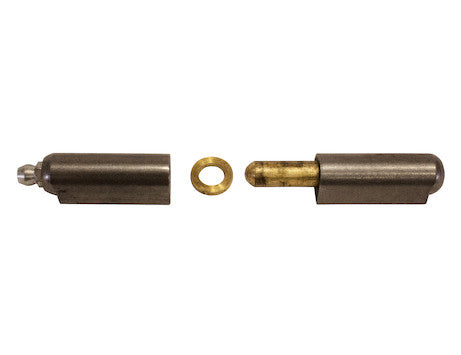

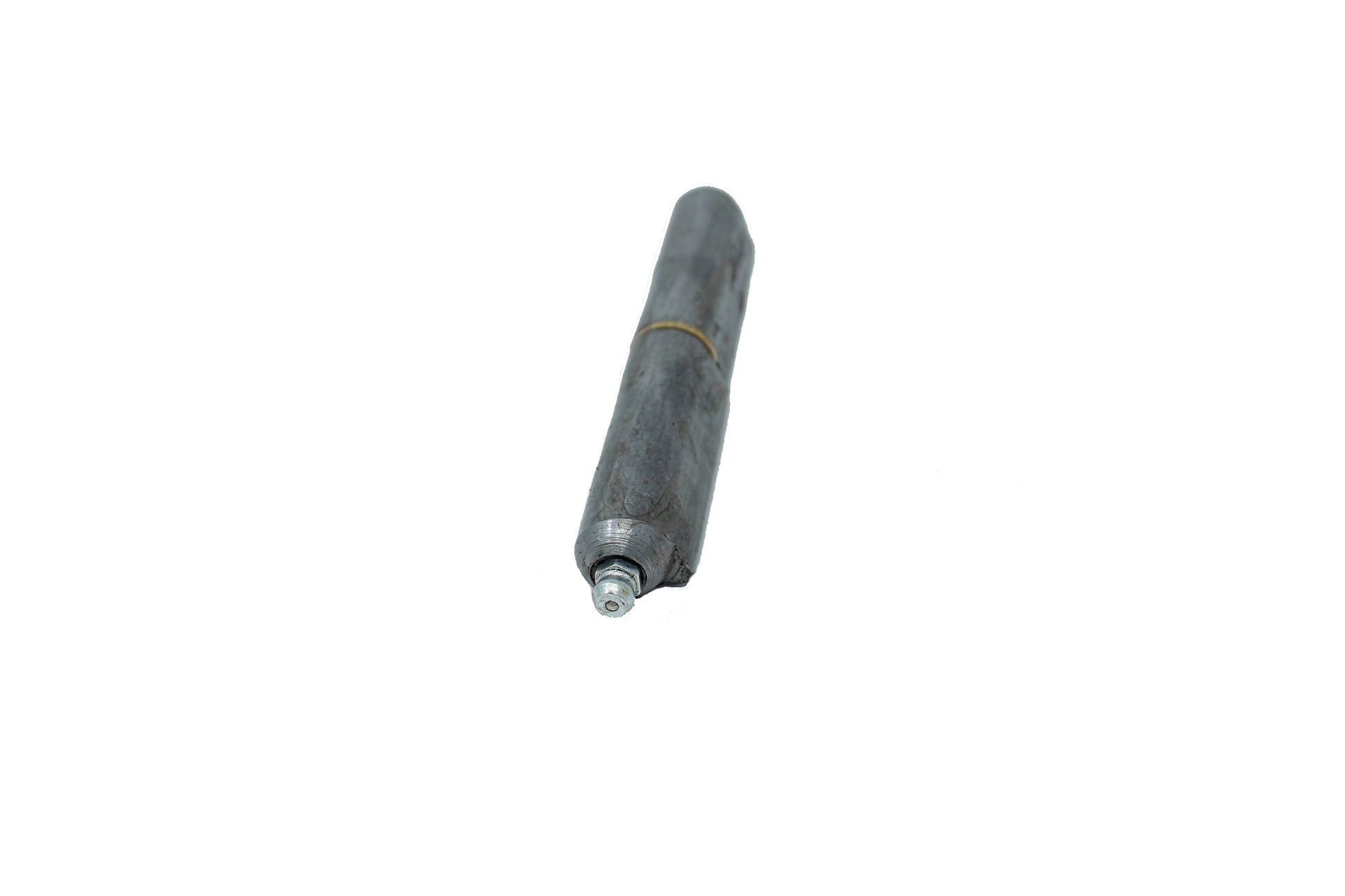

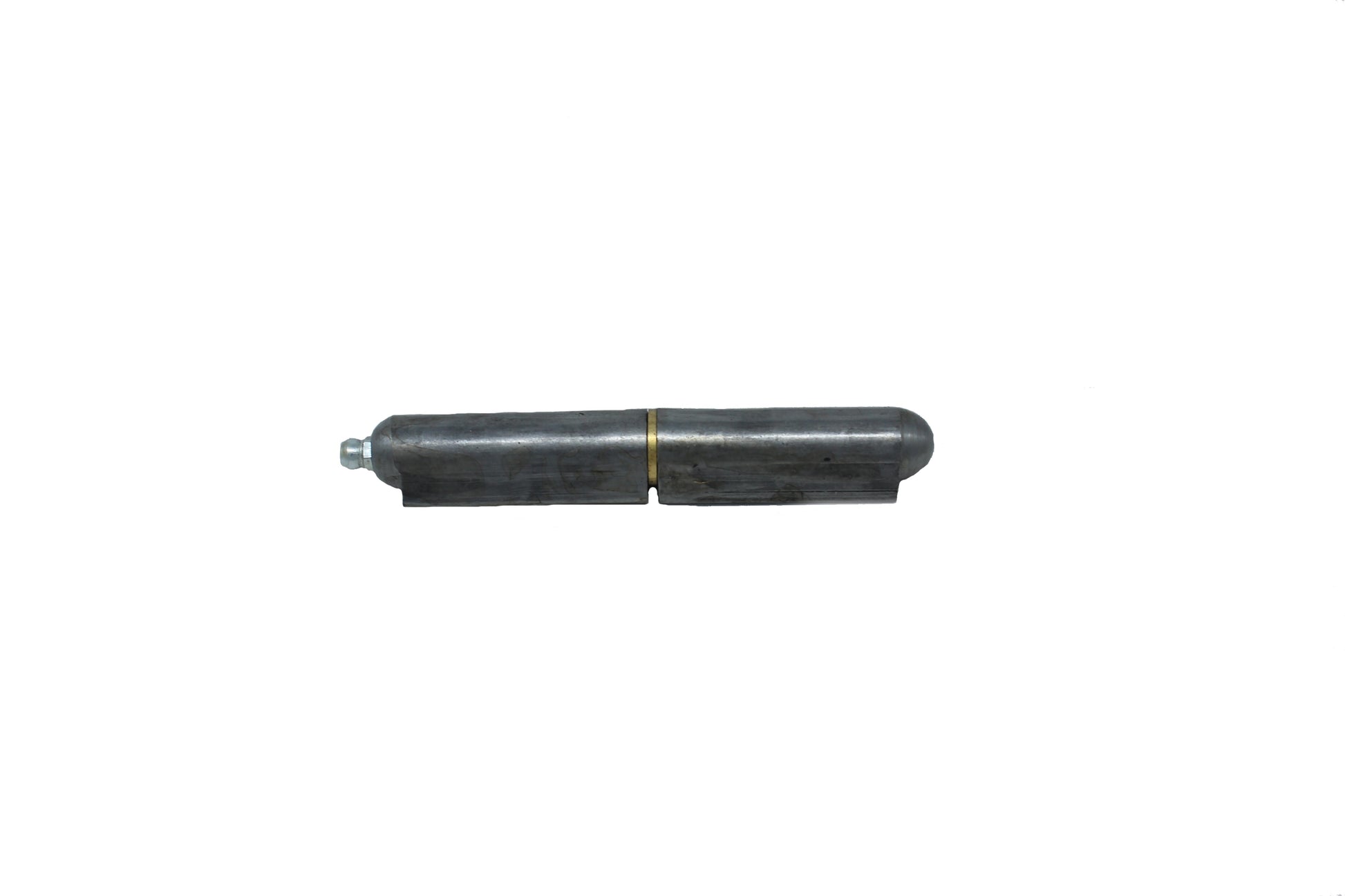

Weld-On Bullet Hinge
Overall Length: 4.75"
Finish: Plain
Hinge Length: 4.72 "
Material: Carbon Steel
Mounting Type: Weld-on
Thickness: 0.77 "
Pin Diameter2: 0.39 "
Overall Diameter: 0.63 "
Greasable: Yes
Pin Length A: 2.01 "
Pin Length B: 1.26 "
Pin Material: Brass
Bushing Material: Brass
