Part # FSS100

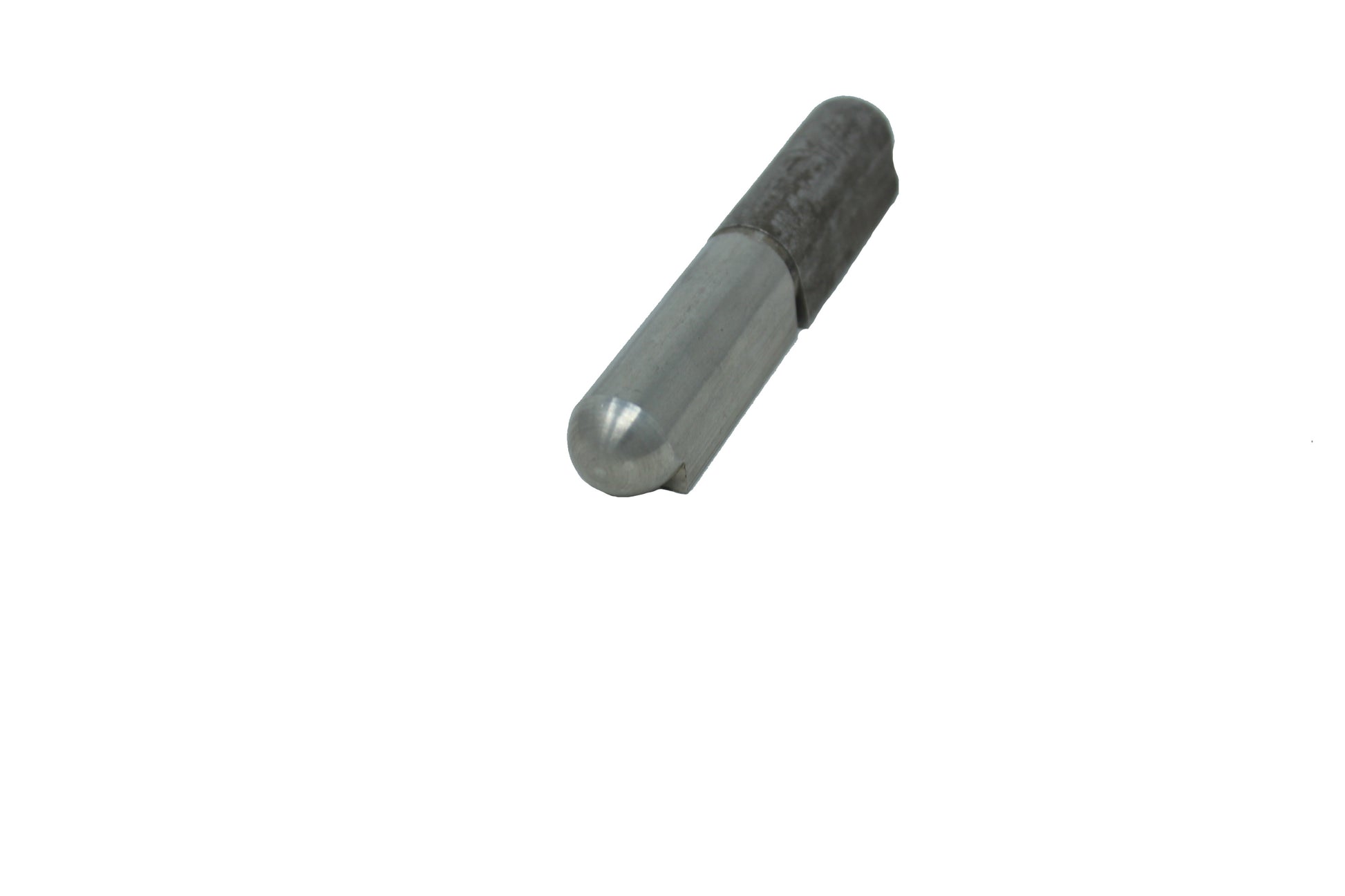

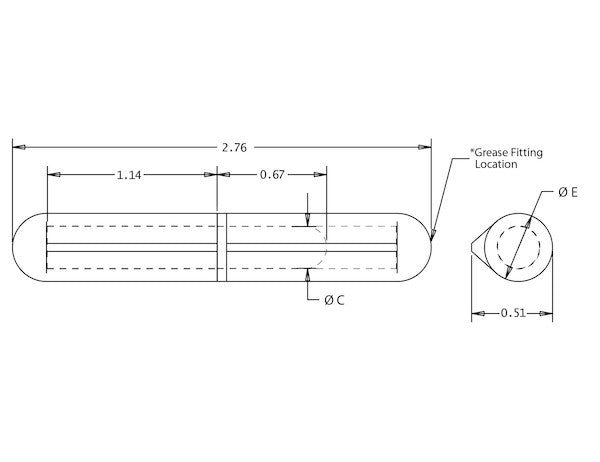

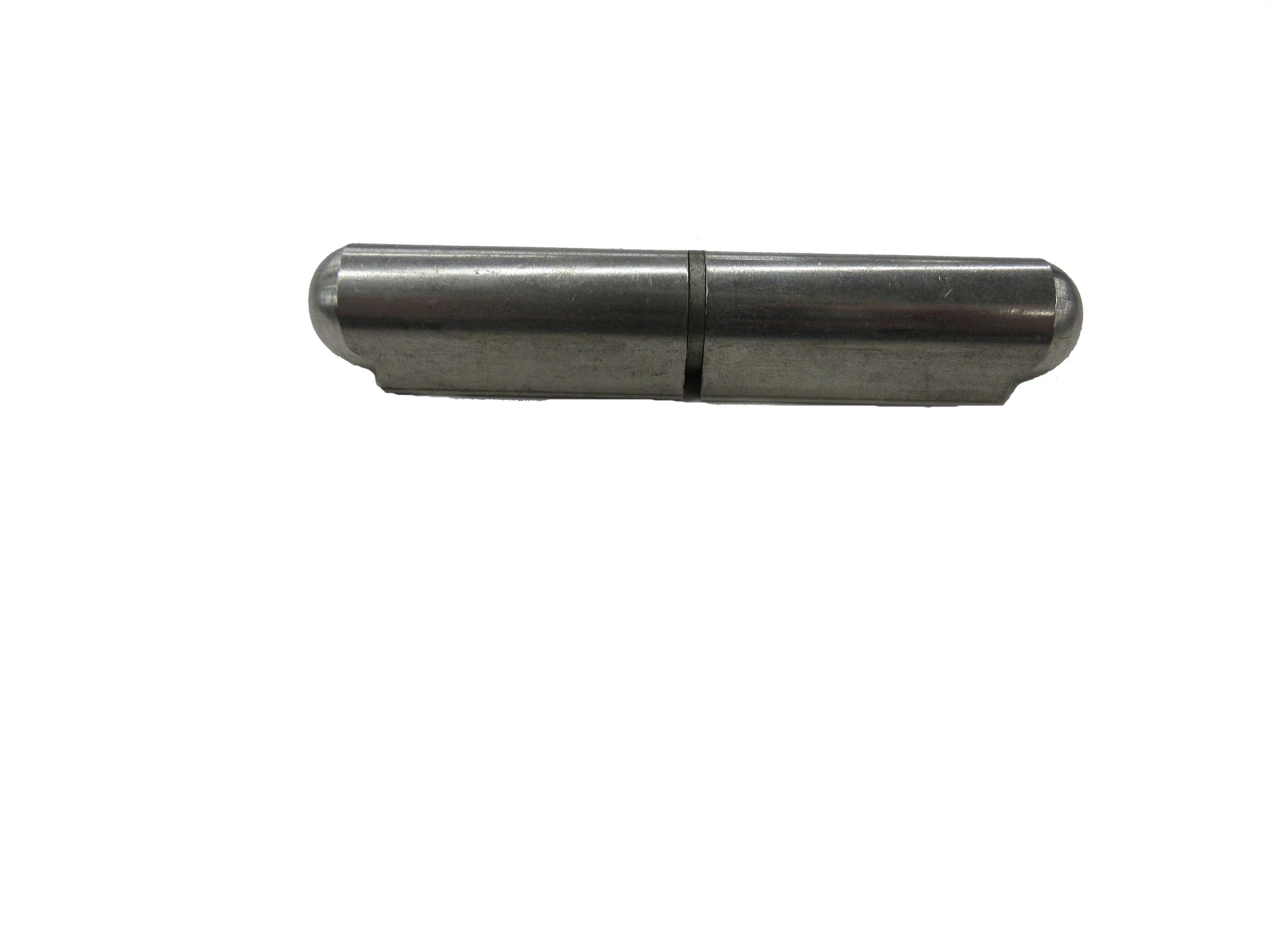

Weld-On Bullet Hinge
Finish: Plain
Hinge Length: 3.94 "
Material: Stainless Steel
Mounting Type: Weld-on
Thickness: 0.77 "
Pin Diameter2 0.39 "
Overall Diameter: 0.63 "
Greasable: No
Pin Length A: 1.65 "
Pin Length B: 1.16 "
Pin Material: Stainless Steel
Bushing Material: Stainless Steel
